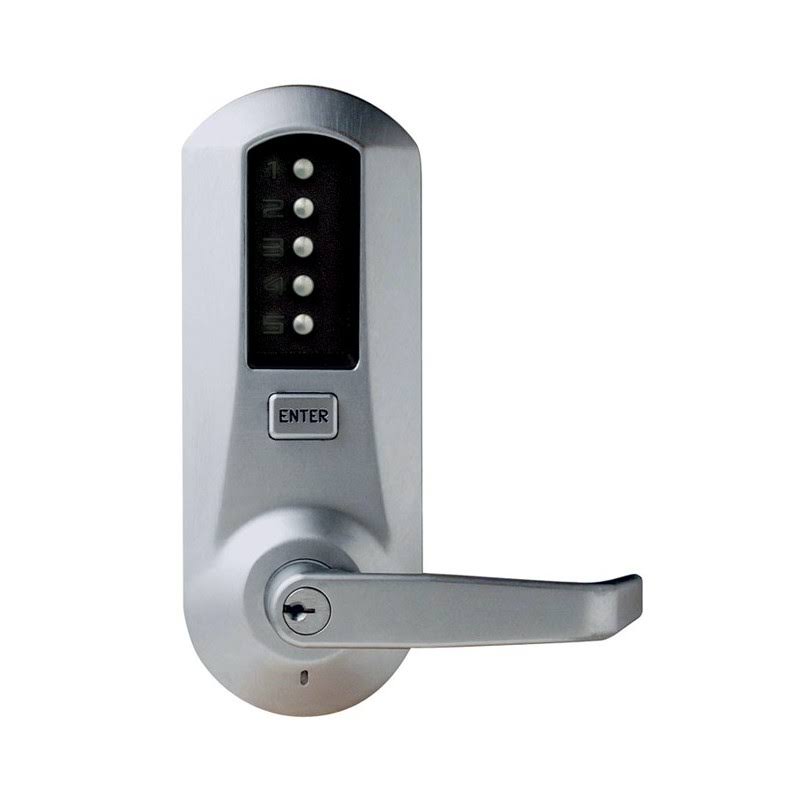

Kaba 5021XSWL744 Cipher Mechanical Push Button Door Lock with Lever NPQ54_J7856

Product details:

Provides exterior access by combination while allowing free egress Numeric Keypad is Vandal resistant with solid metal pushbuttons No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements Easy-to-manage single access code for all users Lock is easily programmed via keypad without removing lock from the door Non-handed. Pre-assembled for left-hand door installations. Easily changed in the field. SFIC Best and Equivalents (6 or 7-pin length) Core not included Accessibility Standard: Americans with Disabilities Act (ADA) Operations Mode is Single Access Code 2-3/4 in. backset Cylindrical 1/2 in. Throw Latch Floating Face Plate Minimum Stile Recommended: 5 in. Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes. Door Thickness: 1-3/8 in. to 2-1/4 in. Pre-assembled to accommodate doors 1-5/8 in. to 2 in. D.O.D. Compliant 5220.22M for supplemental access control. Weather resistant. Wear tested for extensive use in indoor and outdoor applications. Fire Rating: 3-hour UL/ULC fire rating for "A" label doors and installed with an existing fire-ratedexit device (where applicable) Items Supplied with Lock: Installation Manual, Full-Scale Template, Required Installation Hardware, and Tailpiece for Specified Key Override 5021-WL-XS-744
