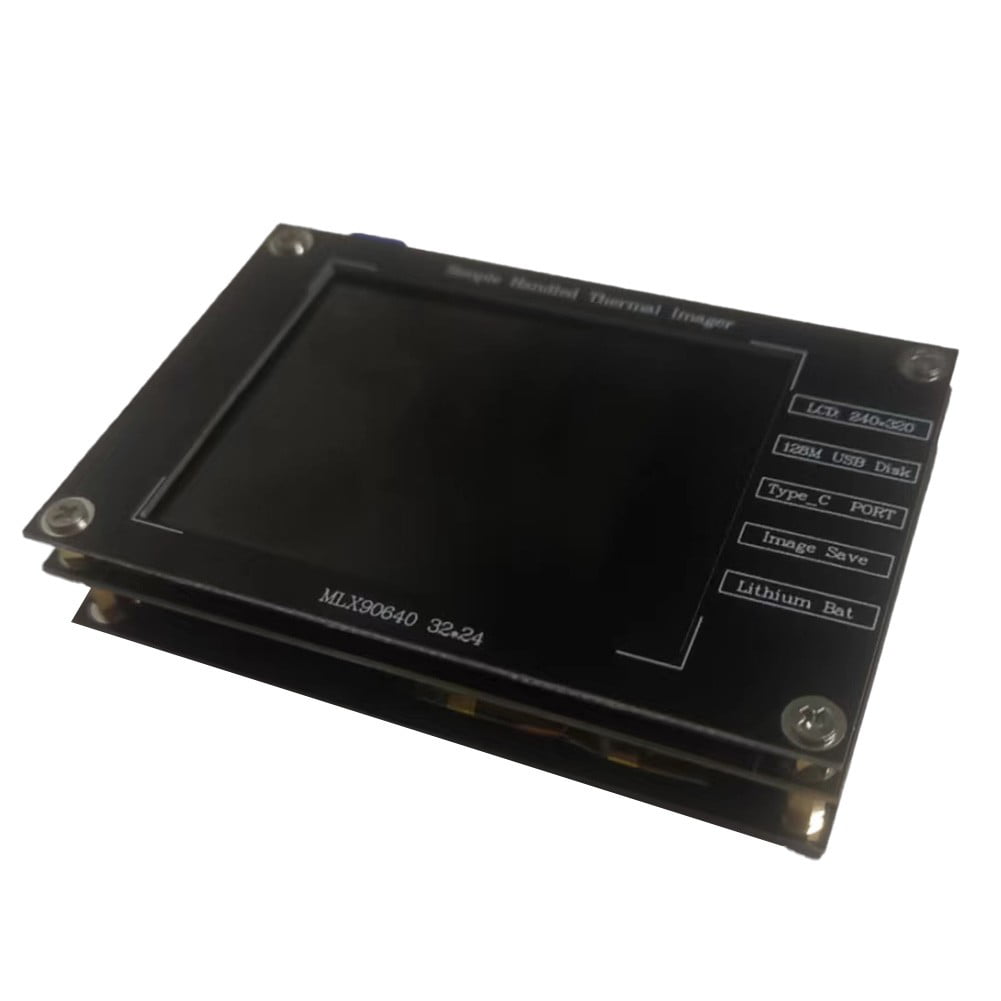

Simple Handheld Thermal Imaging Camera 320 x 240 IR Resolution 2.8 in TFT Screen UMP41_Z8021

Product details:

Feature:
1. Measuring range -40 C to +300 C, 8Hz dynamic refresh rate
The 2.2.8-inch screen has a resolution of 320*240, and the data is clear at a glance; the screen can display and track the maximum temperature, minimum temperature and central point temperature; it can be used in many occasions and is an indispensable tool for home and industrial use
3. The shell is made of FR4 epoxy sheet, which better protects the internal components and has a long service life
4. With the characteristics of small size and light weight, it is easy to carry
5. Lithium-ion battery powered, USB-C charging; up to 4 hours of battery life. Can be used while charging
6. Built-in SPI Flash chip, which can store 100 pictures. View and copy image files by connecting to a computer or mobile phone via a data cable
7. Integrated design, no external equipment required
Specification:
Material: epoxy resin board + printed circuit board
Infrared sensor: MLX90640ESF-BAB
Hardware resolution: 32*24 pixel far infrared array
LCD screen resolution: 320 240 pixels, 2.8-inch screen
Temperature measurement range: -40 C to 300 C
Measurement accuracy: 2 C
Working temperature: 0 to 50 C
Working humidity: 70%
Refresh rate: 8Hz
Field of view: horizontal 55 x vertical 35
Emissivity: 0.95
Charging specification: USB Type-C5V/1A
Product size: 85*55*30mm
Battery: 3.7V 600mAh lithium-ion battery
Working hours: 4 hours
application:
High-precision non-contact temperature measurement
Security and Intrusion Detection
body temperature detection
Intelligent building environment temperature measurement and control
Automobile air conditioning control
Microwave and Oven Temperature Sensing and Control
Temperature monitoring of industrial parts
visual temperature sensor
Floor heating equipment side leakage and maintenance
Thermal inspection of circuit boards and components
Instructions

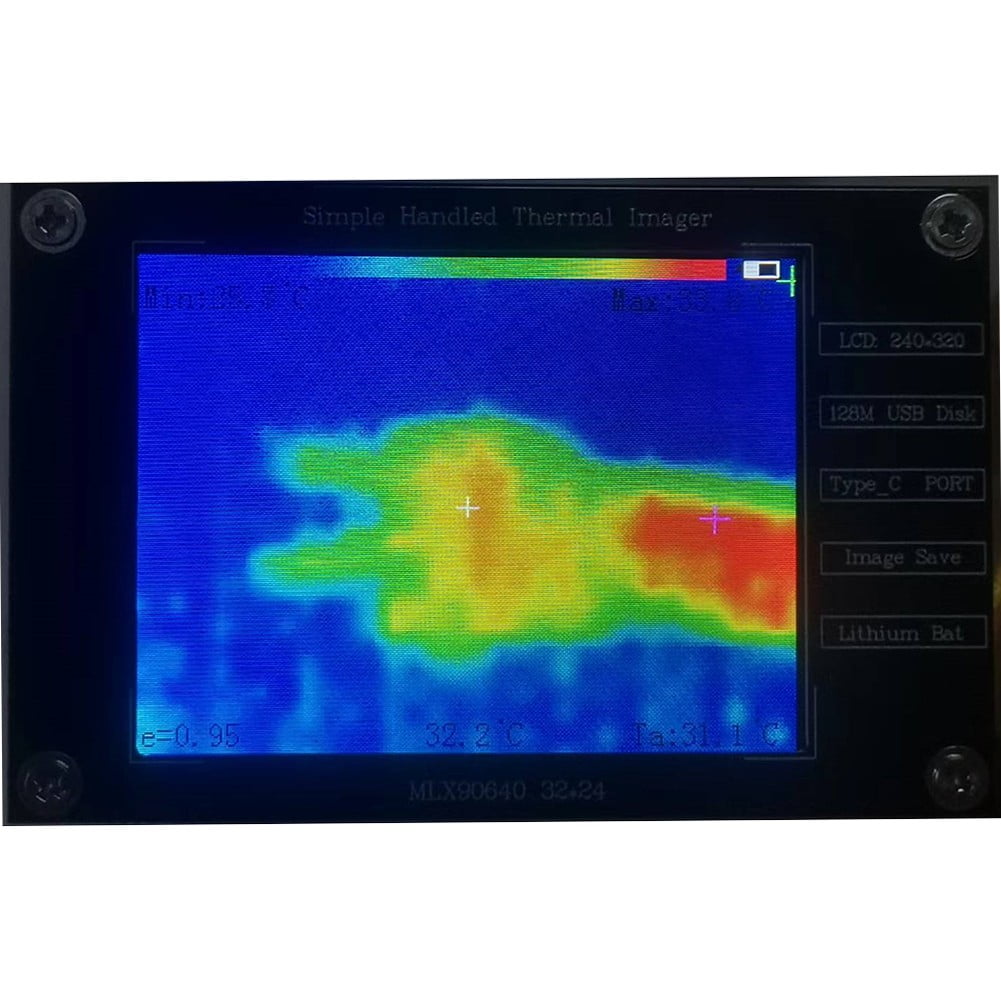

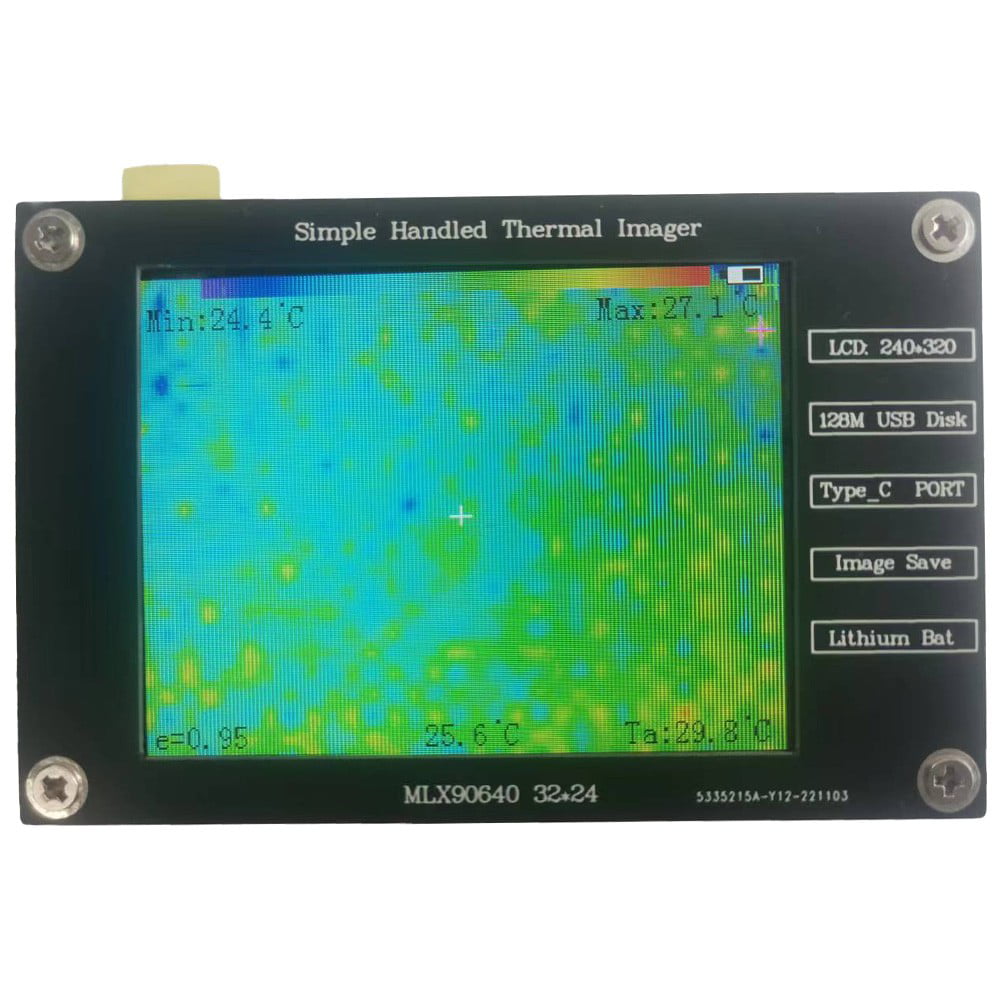

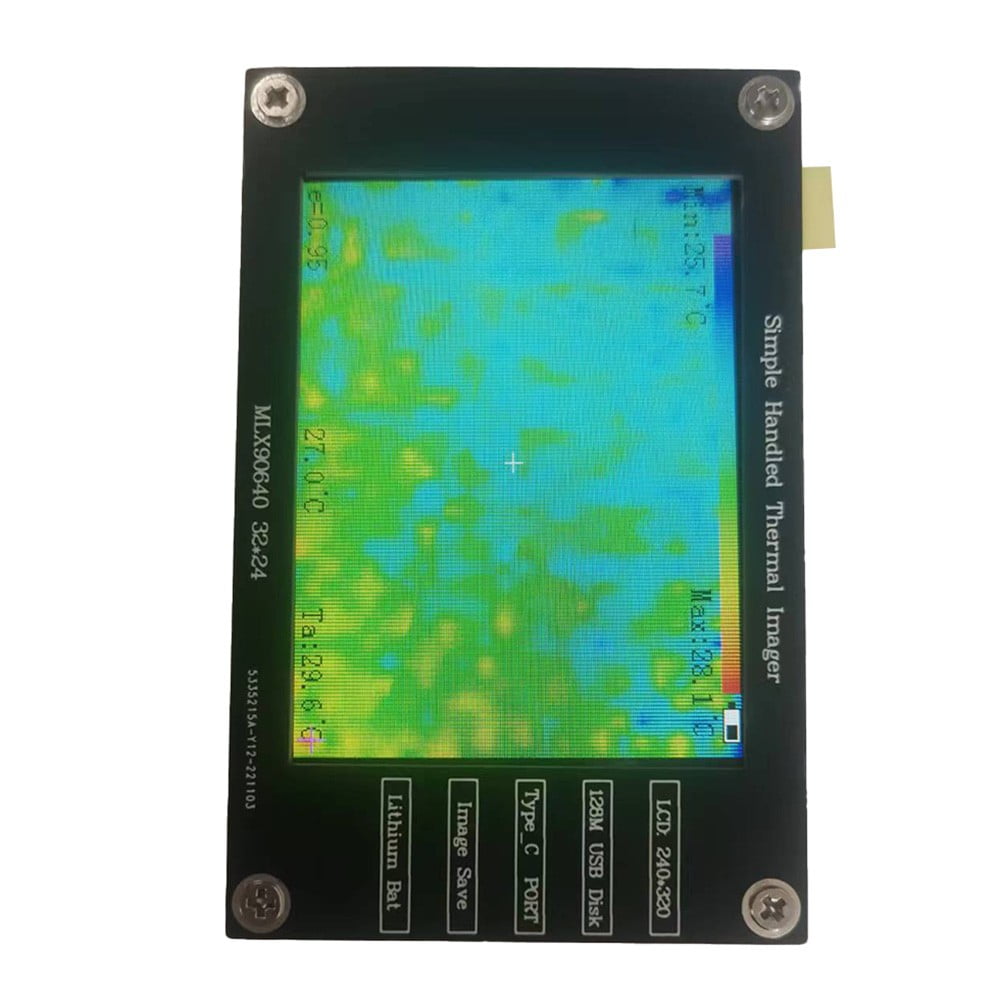

This device adopts an integrated design and can work without external devices. The screen display parameters are shown in the figure below
Taking pictures: In the power-on state, single press the camera/reset button to save the current image.
View or copy images: After connecting to the computer with a USB-C data cable, press the mode switch button to switch to the U disk mode to read or copy images.
Reset: The body can store 99 images. When the storage is full, press and hold the camera/reset button until the screen flickers and release it. The device will reset and return to the initial state after about 15 seconds.
Note: This device is powered by a 3.7v lithium battery. It is recommended to keep the battery power display at about 50% before not using it for a long time
Packing list:
1*Handheld multifunctional 2.8 inch thermal imager
1*mirror cloth
1*USB Type-C
